Surveillance Mega-Store Ultimate Destination for All CCTV Needs
EX-SDI 4MP & 2MPRecord EX-SDI 4MP (1440p) & EX-SDI 2.0/HD-SDI (1080p) on the same DVR. |
CD/DVD DRIVEBurn and playback recorded video from the DVR to a CD-RW or DVD-RW. |
HDD OPTIONSRAID and eSATA configurable. |
SPOT OUTPUTHD-SDI spot monitor output. |
UCCUpstream Coax Communication (UCC) allows the installer to adjust camera settings through the DVR. |
RACK MOUNTABLEUse the included brackets to mount into any 19" rack. |
DVR Address BookConnect to and organize multiple Clinton DVRs with thumbnail previews. |
PTZ & UCC ControlControl 360° PTZ cameras or make camera adjustments using UCC. |
Save Video ClipsRemotely backup video from your DVR to your phone. |
AVMS SOFTWARE
Our Advanced Video Monitoring System (AVMS) makes it possible to monitor up to 256 cameras from one window while being able to open multiple windows at once. Utilize Popup Mode to drag windows to remote monitors creating the ultimate video wall. Whether you are connecting to one unit or a thousand, you will find that AVMS gives your organization everything needed to watch live, recorded or archived video. AVMS requires no licensing or maintenance fees and best of all it comes free with every Clinton DVR.
CONNECT TO MULTIPLE DVRs
CUSTOMIZABLE VIEWSSee video the way you want to see it with customizable screens. Easily drag and drop desired cameras or entire DVRs to populate the screen. The screen can even be a mix of DVR formats; analog, hybrid and EX-SDI. The customized view configuration can be saved for later use. |
ADVANCED PLAYBACKMotion, time, and event are obvious ways to search— but we’re excited about the new and powerful thumbnail search, which allows you to drill down from a wide range of time to the very second. AVMS also features Mueseum Search, which allows you to draw a box over a specific region of interest, and search that area only for events. |
REMOTE CONFIGURATION
AVMS isn’t just for viewing video, you can also instantly adjust DVR settings. Everything you can do at the DVR, can be done remotely: adjust recording rates, view HDD performace, set event actions and more! All without having to make a service call to the DVR.
- DC48V Power Over Coax (PoC)
- Power and Video over Coax Cable
- Record video: 240 FPS at 4MP - 1440p (15 FPS per Channel)
- HDMI (4K), VGA and RCA (Analog) main monitor outputs
- HD-SDI spot monitor output
- Up to 4K (UHD) 3840 x 2160 monitor output
- RTSP / ONVIF S network video output
- Auto detects camera type; EX-SDI 4MP, EX-SDI 2.0, EX-SDI, or HD-SDI
- Automatically adjust resolution for each camera, each channel
- Adjust EX-SDI camera settings with UCC* on all 16 channels
- 16 Audio Inputs / 1 Audio Output
- 8 Alarm Inputs / 4 Alarm Outputs
- Remotely access the DVR with free mobile app (CVMS) and PC software (AVMS)
- Back-up to CD-DVD-RW, USB, or PC via AVMS remote software
- Multiple HDD sizes/configurations available (Max. 40 TB internal storage)**
- RAID configurable
- Jog wheel control for easy searching
- Rack-mountable with included brackets
- UL Listed
Recommended PoC Cameras:
- CE-VX1QHD 4MP EX-SDI PoC Vandal Dome
- CE-VX180QHD 4MP EX-SDI PoC Vandal Dome
- CE-IDX1QHD 4MP EX-SDI PoC Indoor Dome
- CE-X1QHD 4MP EX-SDI PoC Box Camera + Lens

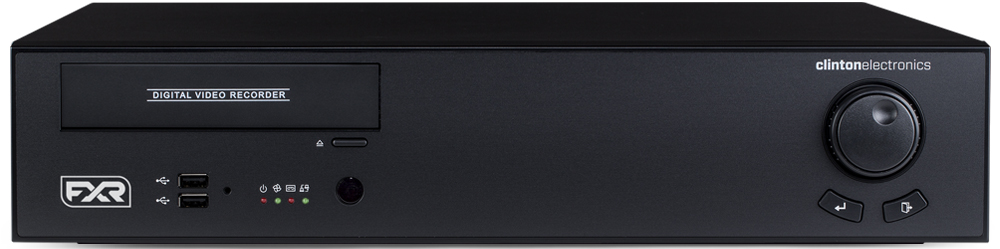

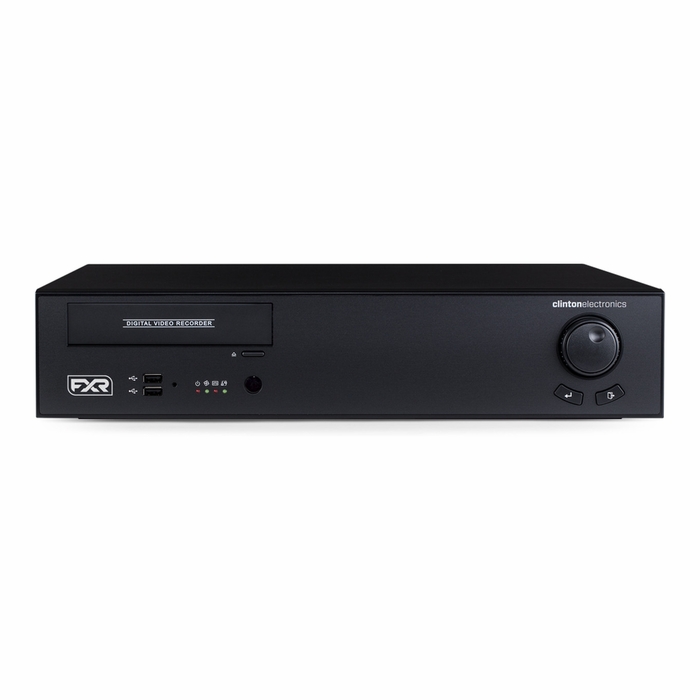

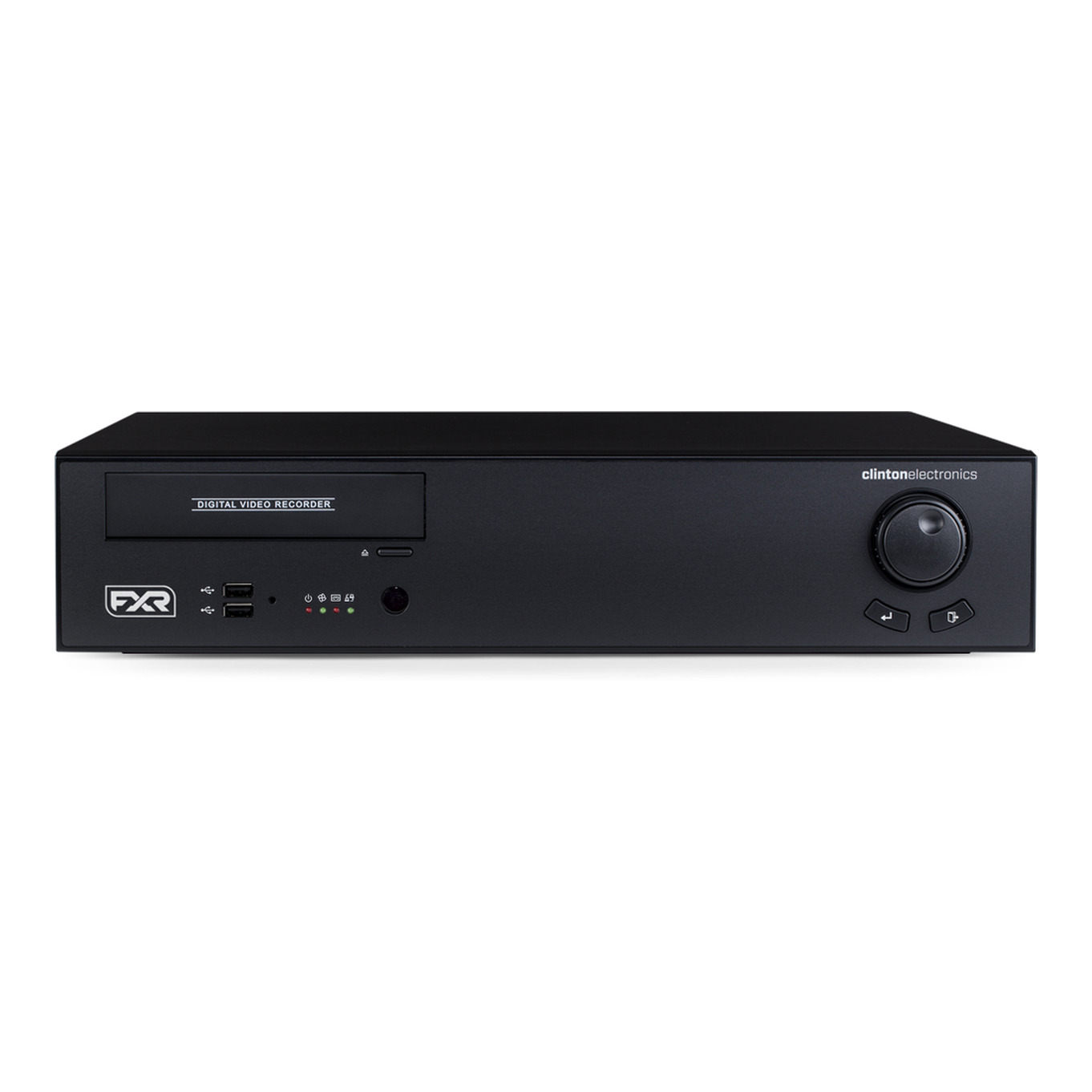

Model | CE-FXPOC16 |
Channels | |
Video Input | 16 Channels |
Input Type | EX-SDI 4MP, EX-SDI 2.0, EX-SDI, HD-SDI BNC |
Storage and Backup | |
Maximum Storage Capacity | 50 TB (internal storage) |
HDD Slots | 5 HDD Slots |
RAID | Configurable |
Backup | Local: USB Flash Drive (Up to 32GB), CD-RW, DVR-RW Remote: AVMS Remote Software (Windows PC) |
Recording | |
Recording Frame Rate | 4MP: 240 FPS Global at 1080p (15 FPS per channel) 2MP: 480 FPS Global at 1080p (30 FPS per channel) |
Recording Mode | Schedule / Continuous / Motion (Event) |
Recording Resolution | Auto Detected (4MP - 1440p / 2MP - 1080p) by each channel |
Recording Quality | Highest / High / Normal / Low |
Video Codec | H.264 |
Audio Codec | ADPCM |
Display | |
Video Output (Main) | 1 HDMI (4K) Output 1 VGA Output 1 RCA (Analog) |
Video Output (Spot) | 1 HD-SDI (1080p) Video Output |
Multiplex View | 1 / 4 / 7 / 9 / 10 / 13 / 16 |
Connections | |
Audio | 16 RCA In / 1 RCA Out |
Alarm | 8 In / 4 Out |
USB | 2 USB Ports (Front) |
PTZ / Keyboard | 1 RS485 (+ / -) |
eSATA | 1 eSATA Port for External HDDs (up to 4 additional HDDs) |
Ethernet | 1 RJ-45 (100/1,000 Mbps) |
Search | |
Playback Speed | x1, x2, x4, x8, x16 |
Mode | Quick / Event Search, Repeat Search, Panorama Search, Museum Search |
System | |
Operating System | Embedded Linux |
File Format | Proprietary DVR Format |
Menu Control | IR Remote, USB Mouse, or Jog Wheel |
PTZ Support | Multiple Protocols Supported (including Clinton, Pelco, Panasonic, Kalatel, etc.) |
Network Bandwidth | 50kbps ~ 8 Mbps, AVMS 1Mbps min. |
Security | |
Password Protection | 2 Admin / 6 Users (DVR and Remote View) |
Data Authentication | Watermark |
Remote Viewing | |
PC | Includes AVMS Remote Software (Windows) |
Mobile | CVMS Mobile App (iOS and Android) |
Web Browser | Internet Explorer (Windows) |
Power Requirements | |
Type | 100 – 220V AC (50/60Hz) |
Power Supply | Includes Power Cable |
Power Consumption | 50 Watts Max ± 10% |
PoC Power | DC48V / 2.75A |
Physical | |
Product Dimensions | 17" x 17.45" x 3.5" 431.8mm x 443.23mm x 88.9mm |
Product Weight (Without HDD) | 14.1 lbs (6.396 kg) |
Optional Mounting | |
Rack Mount | Includes Brackets |
Environmental | |
Operating Temperature | 32° to 104° F (0° to 40° C) |
Operating Humidity | 20% to 80% RH |
What’s Included | |
AVMS Remote Software Disc Power Cable Rack-mountable Brackets 8 Screws for Rack-mountable Brackets USB Mouse IR Remote | |
Warranty & Support | |
Warranty | 3 Year Warranty w/1st Year Advance Replacement |
Technical Support | Free Lifetime Technical Support via Phone (1-800-549-6393) |
