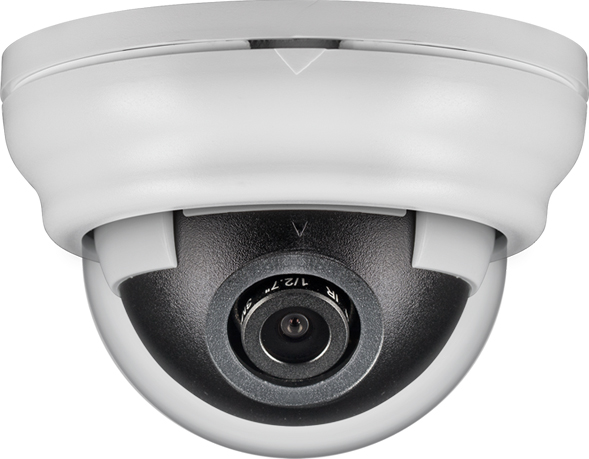

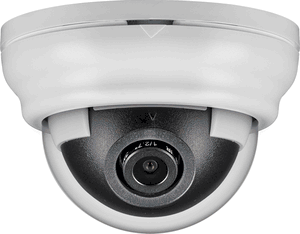

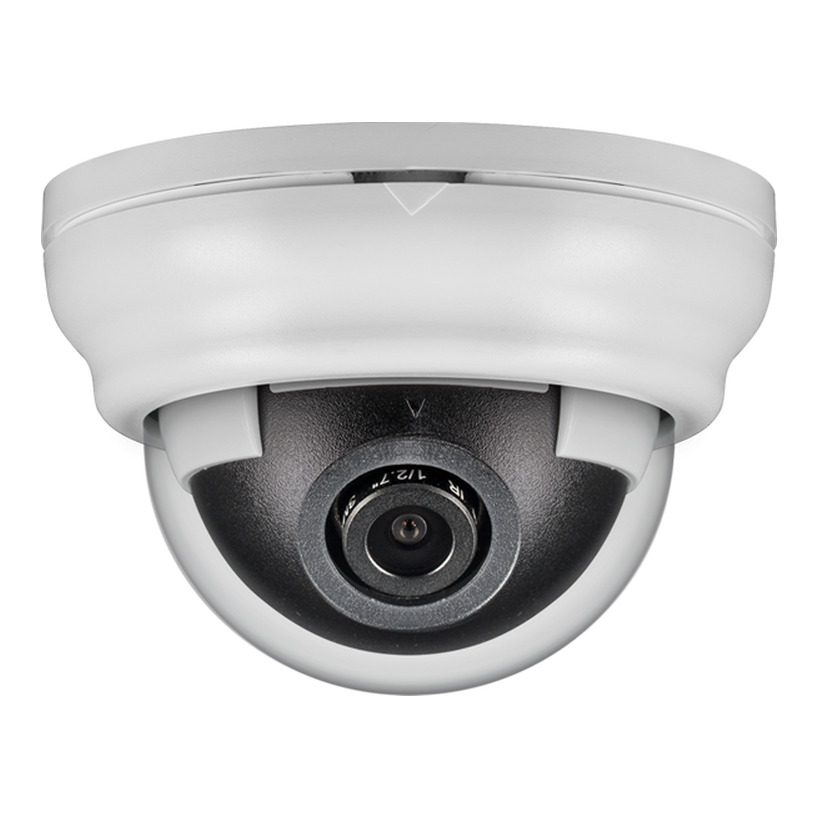

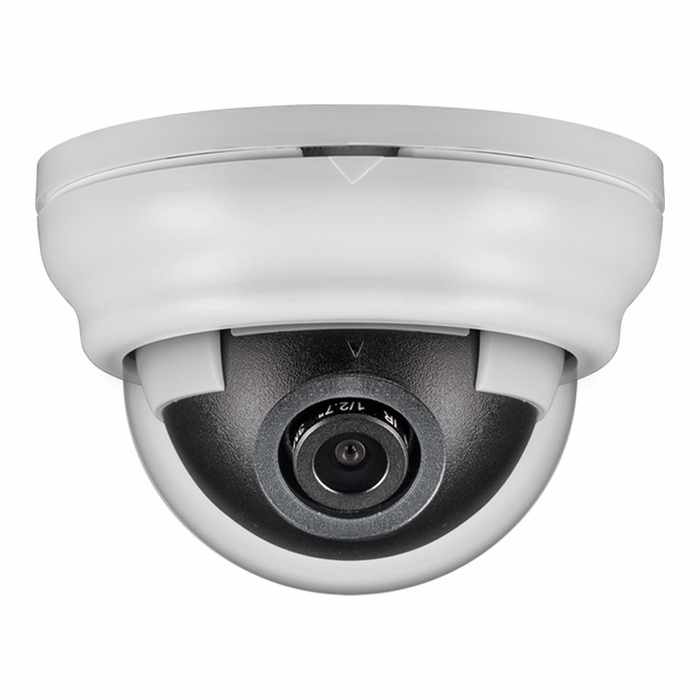

Clinton Electronics CE-D10HDL EX-SDI 2.0 Mini Indoor Dome
Clinton Electronics CE-D10HDL EX-SDI 2.0 Mini Indoor Dome
- 1/2.9 SONY 2.19 Megapixel CMOS
- 1080p @ 30fps Over RG59 Coax
- 3.6mm (2.0) Fixed Lens
- EX-SDI 2.0 / HD-SDI & HD Analog outputs
- EXHD Lite 2.0 DSP
- OSD Menu Control via Built-in Joystick (on cable)
- DC12V
Model | CE-D10HDL |
Camera | |
Image Sensor | 1/2.9 SONY 2.19 Megapixel CMOS |
Resolution | Full HD 1080p |
Effective Pixels | 1985 (H) x 1105 (V) |
Scanning System | Progressive Scan |
S/N Ratio | More than 50dB (AGC Off) |
Frame Rate | 1080p: 30 FPS 720p: 30 FPS |
Minimum Illumination | 0.1 Lux |
Shutter Speed | 1/30 1/60,000 sec. / AUTO |
Lens | |
Type | Fixed |
Focal Range | 3.6mm |
Max. Aperture Ratio | 2.0 |
DSP | |
DSP Version | EXHD Lite 2.0 |
Menu Control | |
Joystick | Located on Cable |
Connections | |
HD Video Output | 1 BNC Output (Black & Silver): EX-SDI 2.0, EX-SDI, HD-SDI Selectable |
Analog Video Output | 1 BNC Output (Yellow & Silver): CVBS (1,000 TVL), A_HD, C_VI, T_VI Selectable |
Power Requirements | |
Type | DC12V |
Power Consumption | 100mA (0.1A) ±10% |
Physical | |
Product Dimensions | 3.1 (Dia.) x 2.1 (H) 79mm (Dia.) x 53.4mm (H) |
Product Weight | 0.25 lb / 0.11 kg |
Materials | |
Housing | Plastic |
Dome | Polycarbonate |
Environmental | |
Operating Temperature | 32° to 113° F (0° to 45° C) |
Operating Humidity | 0% to 90% RH |
Standards | |
FCC | Part 15B, Class A |
RoHS | Compliant |
Whats Included | |
DC12V Pigtail Adapter Mounting Template 2 Mounting Screws | |
Warranty & Support | |
Warranty | 3 Year Warranty w/1st Year Advance Replacement |
Technical Support | Free Lifetime Technical Support via Phone (1-800-549-6393) |
