Home CCTV Cameras - Analog Professional Box Surveillance Cameras, C-Mount Clinton Electronics CE-CC115 S7 Box Camera

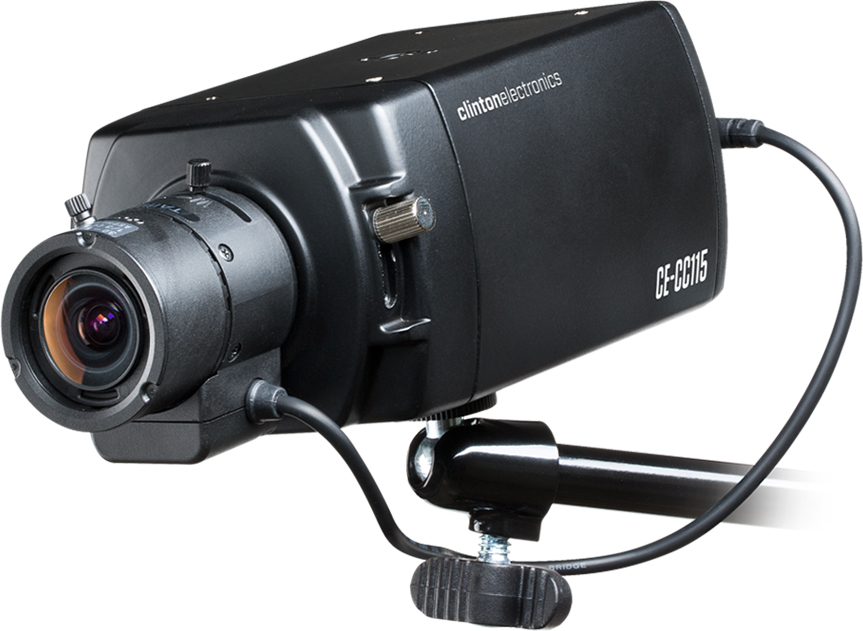

Clinton Electronics CE-CC115 S7 Box Camera
DIN JACKMake adjustments to the camera OSD menu easier by plugging in a CE-REMOTE to the DIN Jack. |
BACK-FOCUS ADJUSTMENTUse the back-focus adjustment to fine tune the focus of the camera lens. |
- 1/3" SONY Exmor 1.3 Megapixel CMOS Sensor
- 1000 TVL Resolution
- Back-Focus Lens Adjustment
- S7 Digital Signal Processor
- OSD Menu Control via Built-in Joystick or CE-REMOTE
- DC12V/AC24V
- Lens Sold Separately
Model | CE-CC115 |
Camera | |
Image Sensor | 1/3" SONY Exmor 1.3 Megapixel CMOS Sensor |
Resolution | 1000 TVL |
Effective Pixels | 1305 (H) x 1049 (V) |
Scanning System | Progressive |
S/N Ratio | 52dB |
Minimum Illumination | 0.00001 Lux (Sens-Up x64) |
Shutter Speed | 1/60 – 1/60,000 sec. |
Lens | |
Mount Type | CS Mount or C Mount (includes adapter) |
DSP | |
DSP Version | S7 |
Menu Control | |
Joystick | Built-in |
DIN Port | For use with optional CE-REMOTE |
Connections | |
Composite Video Output | 1 BNC Output |
Remote Control Input | 1 DIN Input |
Power Requirements | |
Type | DC12V and AC24V |
Power Consumption | DC12V: 3.6 Watts (0.3 Amp) AC24V: 2.4 Watts (0.1 Amp) |
Physical | |
Product Dimensions | 2.71" (W) x 2.16" (H) x 4.33" (D) 69mm (W) x 55mm (H) x 110mm (D) |
Product Weight | 0.75 lb (340.19 g) |
Materials | |
Housing | Aluminum |
Environmental | |
Operating Temperature | 14° to 122° F (-10° to 50° C) |
Operating Humidity | 0% to 90% RH |
Standards | |
FCC | Part 15B, Class A |
RoHS | Compliant |
What’s Included | |
4 Pin Auto Iris Lens Adapter C Mount Lens Adapter | |
Warranty & Support | |
Warranty | 3 Year Warranty w/1st Year Advance Replacement |
Technical Support | Free Lifetime Technical Support via Phone (1-800-549-6393) |
