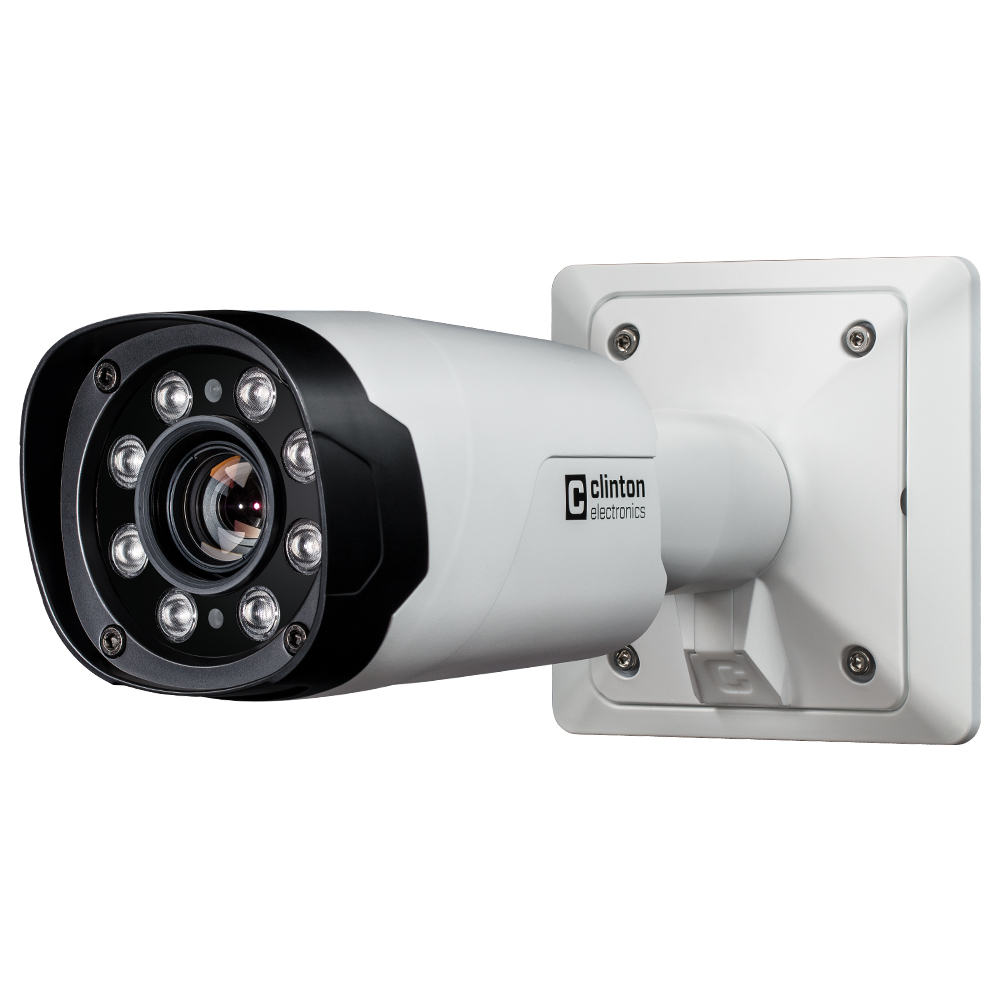

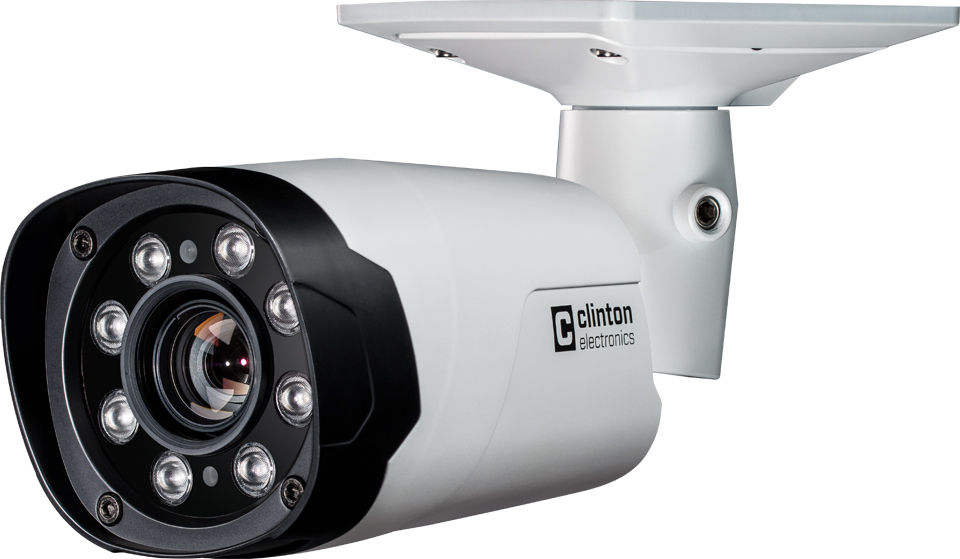

IP68 WEATHER RATEDConstant exposure to the elements is tough on any camera. Because the BZ series is IP68 weather rated, you no longer need to worry about adverse weather conditions. |
HI INTENSITY IR LEDsOne IR LED on the new BZ Series Bullet outputs as much light as eight standard IR LEDs, and the focusing lenses help evenly distribute the infrared light. |
AUTOFOCUSAll BZ cameras have Motorized Zoom & Auto Focus. Use the CE-REMOTE to set the focal length, and the autofocus lens will focus the scene to perfection. |
EASY INSTALLATIONBZ bullet cameras can be mounted to a variety of Conduit Boxes. Use the mounting hook to affix the camera in place and free both hands for screw fastening. |
EASY ADJUSTMENTSay goodbye to cumbersome brackets that require multiple set screws. Achieve any angle and lock the BZ camera in place with just one screw. |
DUAL VOLTAGE + RVMAll BZ Series Bullets are DC12V/AC24V and feature Rated Voltage Monitoring (RVM). The RVM LED indicator will illuminate to alert the installer of improper voltage. |
- 1/3" PANASONIC 2 Megapixel CMOS Sensor
- 1080p @ 30fps Over RG59 Coax
- 5.1~51mm (ƒ1.6) True D/N Autofocus Lens
- 8 High Intensity IR LEDs
- EX-SDI / HD-SDI & Analog option
- EXHD DSP
- OSD Menu Control via CE-REMOTE (*CE-REMOTE required for Zoom/Focus Adjustments)
- RVM (Rated Voltage Monitoring)
- DC12V/AC24V
- IP68 Weather Rated
Model | CE-BZ3HD |
Camera | |
Image Sensor | 1/3" PANASONIC 2 Megapixel CMOS Sensor |
Resolution | 1080p |
Effective Pixels | 1944 (H) x 1092 (V) |
Scanning System | Progressive Scan |
S/N Ratio | More than 52dB (AGC Off) |
Frame Rate | 1080p: 30 FPS 720p: 60, 30 FPS |
Minimum Illumination | Color: 0.5 Lux (Sens-Up x32) Black and White: 0.1 Lux (Sens-Up x32) |
Shutter Speed | 1/30 - 1/60,000 sec. / AUTO |
Lens | |
Type | Motorized Vari-Focal Auto-Focusing |
Focal Range | 5.1~51mm |
Max. Aperture Ratio | ƒ1.6 |
IR LEDs | |
Quantity | 8 High Intensity IR LEDs |
DSP | |
DSP Version | EXHD |
Menu Control | |
DIN Port | For use with CE-REMOTE (*CE-REMOTE required for Zoom/Focus Adjustments) |
Connections | |
HD Video Output | 1 BNC Output (HD-SDI, EX-SDI 2.0) |
Composite Video Output | 1 BNC Output |
Remote Control Input | 1 DIN Input |
Power Requirements | |
Type | DC12V and AC24V |
Power Consumption | DC12V: 10.2 Watts (0.85 Amp) AC24V: 7.2 Watts (0.3 Amp) |
Physical | |
Product Dimensions | 9.25" (L) x 5.25" (H) 234.95mm (L) x 133.35mm (H) |
Product Weight | 2.35 lbs (1065.942 g) |
Materials | |
Housing | Aluminum |
Environmental | |
Weather Rating | IP68 |
Operating Temperature | -40° to 122° F (-40° to 50° C) |
Operating Humidity | 0% to 95% RH |
What’s Included | |
Mounting Plate 4 Phillips Screws (M5x25) 4 Allen Bolts (M4x8) 4 Plastic Washers 4 Drywall Anchors Foam Gasket 3mm Allen Wrench 5mm Allen Wrench | |
Warranty & Support | |
Warranty | 3 Year Warranty w/1st Year Advance Replacement |
Technical Support | Free Lifetime Technical Support via Phone (1-800-549-6393) |
