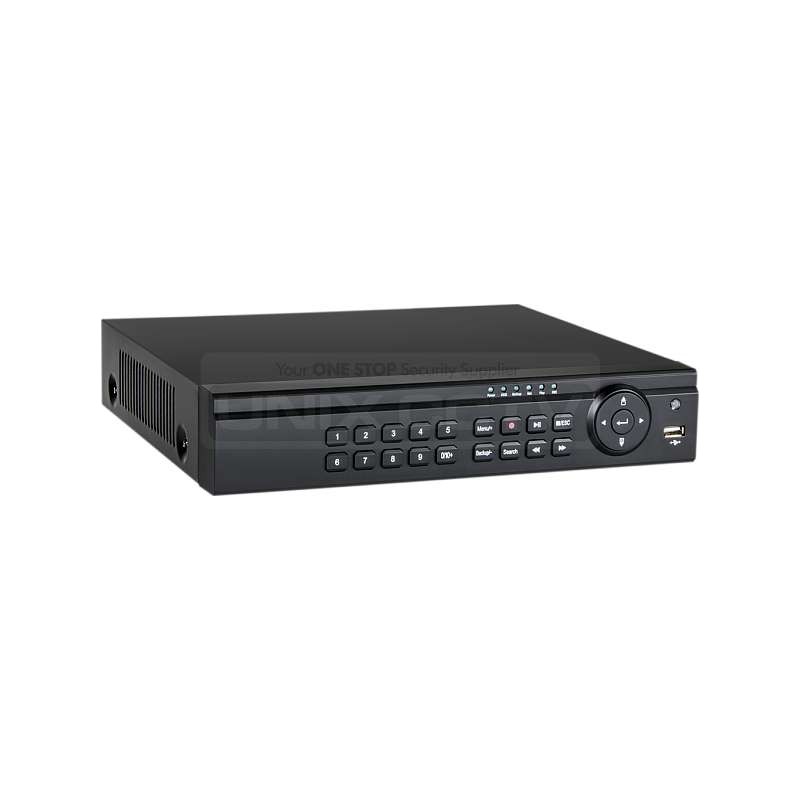

Telpix AVST-FD2704 4CH FD Series 1080p Hybrid Security DVR System – Analog + 960H + A-HD + IP Camera

Additional View

Telpix AVST-FD2704 4CH FD Series 1080p Hybrid Security DVR System – Analog + 960H + A-HD + IP Camera

SKU#

:

AVST-FD2704

Regular Price

:

$149.95

Sale Price

:

$99.95

You Save

$50.00(33.34% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

Description
Features
Specifications
Downloads
Product Review

Telpix AVST-FD2704 4CH FD Series 1080p Hybrid Security DVR System – Analog + 960H + A-HD + IP Camera

FD Series DVR detects Analog / 960H / A-HD camera automatically.REAL-TIME Live / 720p or 1080p Recording and Playback
H.264
iPhone Android App : SuperLive PLUS
RS-485 for PTZ control
Free DDNS Support
4 CH A-HD Video Input, 4 CH 1080P / 720P Recording
4 CH DVR supports 1 CH IPC 1080P/960P/720P/WD1/D1 recording
Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual / timer / motion / sensor
Playback: 4 CH simultaneously playback
Search: time / calendar, events ( sensor, motion )
Express and flexible backup via USB, network
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
Dual stream technology to encode recording stream and network stream respectively. User can adjust network stream to fit bandwidth without changing recording quality
Multi-user online simultaneously
Authorization management, log review and device status review
HDMI 1080P output, true high resolution display
Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
Powerful smart phone surveillance supporting iPhone, Android
Support NAT function, support QR code scanning by mobile phone

Model	AVST-FD2704
SYSTEM
Compression	Standard H.264 High Profile
CPU	Cortex A9
OS	Embedded Linux
VIDEO
Input	BNC × 4
IP Input/Access Bandwidth	IPC × 1 / 6Mbps
Ouput	HDMI × 1 : 1920 × 1080 / VGA × 1 : 1920 × 1080 BNC × 1 : used as CVBS output only
AUDIO
Input	RCA × 4
Output	RCA × 1
2-way audio	Take up channel one audio input
RECORD
Resolution	1080P : 1920 × 1080, 720P : 1280 × 720
Frame Rate	720P: 100 fps ( PAL ) 120 fps ( NTSC ) 1080P: 50 fps ( PAL ) 60 fps ( NTSC )
Bit Rate	1 M ~ 4 Mbps
Encode	VBR / CBR
Quality	6 Level
Mode	Manual, Timer, Motion, Sensor
File Manager	Lock, unlock, reserving time
IP Input
Resolution	1080P / 960P / 720P / WD1 / D1
Frame Rate	1080P: 12 fps ( PAL ) 15 fps ( NTSC ) 960P/720P: 25 fps ( PAL ) 30 fps ( NTSC )
PLAYBACK
Playback	4 CH
Search	Time / calendar search, event ( motion )
Smart Search	Highlighted date and time to display the channel record
Function	Play, Pause, FF, FB, Digital zoom
ALARM
Mode	Sensor, Motion, Video Loss
Input	4 CH
Output	1 CH
Triggering	Record, PTZ move, alarm out, e-mail, etc
NETWORK
Interface	RJ45 10M/100M/1000M adaptive ethernet network port × 1
Protocol	TCP / IP, UDP, DHCP, DNS, PPPOE, DDNS
Others	10 users online, dual stream
CELLPHONE
OS	iPhone, Andriod
Function	Multi-screen surveillance ( for certain model ), record, snapshot, PTZ control, save the device list
I/O
HDD	SATA × 1
RS485	RS485 × 1, connect to PTZ or keyboard
USB	USB 2.0 × 2, one for mouse, another for USB backup device
OTHERS
Power Supply	DC 12V
Consumption	< 6W ( without HDD )
Dimensions	255 mm × 210 mm × 42 mm (W x D x H)
Work Environment	14°F ~ 122°F(-10°C ~ 50°C), 10% ~ 90% Humidity
