Home HD-TVI High Definition Cameras and DVRs HD-TVI Security Cameras Pan Tilt Zoom, PTZ Speed Dome HD TVI Cameras Eyemax ATC-PT-B2330 All-in-One ( HD-TVI / A-HD / HD-CVI ) Indoor PTZ Speed Dome Camera with 30× Optical Zoom

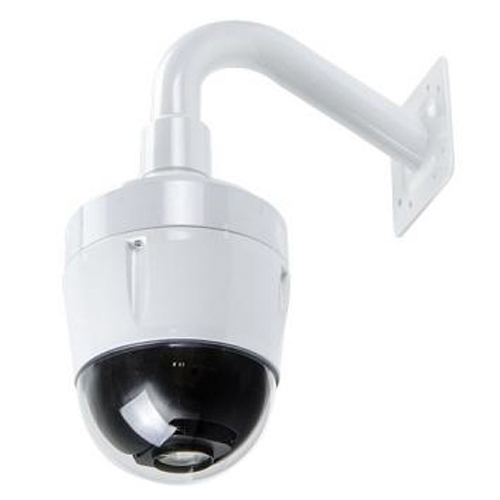

Eyemax ATC-PT-B2330 All-in-One ( HD-TVI / A-HD / HD-CVI ) Indoor PTZ Speed Dome Camera with 30× Optical Zoom
Eyemax ATC-PT-B2330 All-in-One ( HD-TVI / A-HD / HD-CVI ) Indoor PTZ Speed Dome Camera with 30× Optical Zoom
Model | ATC-PT-B2330 | |
CAMERA | ||
Image Sensor | 1/3” Panasonic CMOS Sensor | |
Video Out | 1080p ( A-HD / HD-TVI / HD-CVI ) | |
Zoom | 30 × Optical Zoom | |
Focal Length | 30 ×: F1.6~3.7 , f=4.3~129mm | |
Minimum Illumination | Color: 0.5Lux, BW: 0.1Lux; Color DSS: 0.002Lux, BW DSS: 0.001Lux | |
Day & Night | Active/Passive/Day/Night/Schedule | |
Focus | Auto | |
Iris | 0---20 | |
Shutter Speed | 1/30(25)---1/60000sec. | |
AGC | Off/On | |
White Balance | Auto | |
Mirror | None/Horizontal/Vertical/Horizontal & Vertical | |
WDR | High/Low/Disable | |
PTZ | ||
Pan/Tilt Range | Pan: 360° Endless, Tilt: 180° | |
Speed | Max. 400 degrees/sec. | |
Preset | 254 | |
Tour | 8 | |
Auto Scan | 8 | |
Pattern | 4 | |
Group | 8 | |
Schedule | 16 | |
Other PTZ Functions | Auto Flip, Parking Action, Power up Action | |
Protocol | Pelco D/P | |
I/O | ||
Alarm In | 2CH | |
Alarm Out | 1CH | |
General | ||
Dome Dimension | ø165mm x 192Hmm | |
Working Temperature | -10°C~+5.0°C | |
Working Humidity | 0.9 | |
Fan | Start temp: 45° and 0° | |
Heater | 0° | |
Power Supply | AC24V / DC12V (+/-10%) | |
Extra Video Out | N/A | |
Power Consumption | DC12V (15W), AC24V (18W) | |
Waterproof | IP65 | |
Certificate | CE, FCC |
