Home HD-TVI High Definition Cameras and DVRs HD-TVI Digital Video Recorders 4-32 Channel AR505-16|16CH HD TVI DVR

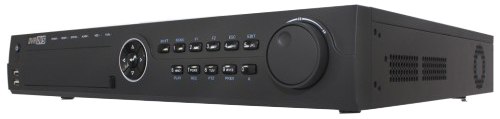

AR505-16|16CH HD TVI DVR
AR505-16|16CH HD TVI DVR
- H.264 & Dual-stream video compression
- Support HD-TVI/analog/IP camera triple hybrid
- Support both HD-TVI and analog cameras with adaptive access
- Full channel@1080P resolution real-time recording
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 16CH synchronous playback at 1080P resolution
Model | AR505-16 | |
System | ||
Interface | RS-232, RS485, Keyboard | |
Video | ||
Frame Rate | Main stream: 1/16 fps ~ Real time frame rate ; Sub-stream: 1/16 fps ~ Real time frame rate | |
Bit Rate | 32 Kbps-10 Mbps | |
Video & Audio | ||
CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704 × 576, NTSC: 704 × 480 | |
Video Input | 16CH HD-TVI/960H, BNC interface (1.0Vp-p, 75 O) | |
IPC Input | 2CH (up to 18CH), Up to 2MP resolution | |
Video Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | |
Audio Bit Rate | 64kbps | |
Audio In | 4CH, RCA (2.0 Vp-p, 1 KO) | |
Supported Camera Types | 720P/25, 720P/30, 720P/50, 720P/60, 1080P/25, 1080P/30, CVBS | |
Audio Out | 2-ch, RCA (Linear, 1KO, for VGA output and CVBS output respectively) | |
2-Way Audio | 1CH, RCA (2.0 Vp-p, 1 KO) | |
Playback | ||
Playback | 16CH | |
Playback Resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF | |
Recording | ||
Recording Resolution | Main stream: 1080P / 720P / VGA / 4CIF / CIF; Sub-Stream: WD1 (non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA | |
Network | ||
Ethernet | 1; 10M / 100M / 1000M Self-aedaptive Ethernet | |
Remote Connections | 128 | |
Protocol | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS | |
Storage | ||
Internal HDD | 4 SATA interfaces ; (Up to 6 TB for each disk) | |
External HDD | 1 eSATA interface | |
Auxiliary Interface | ||
RS232 | Yes | |
RS485 | Yes | |
USB | 3 USB2.0 interfaces | |
General | ||
Power Supply | 100 ~ 240VAC, 47 ~ 63HZ | |
Power Consumption | = 55W (No HDD) | |
Working Environment | -10 ºC ~ 55 ºC (14 ºF ~ 131 ºF), Humidity : 10% ~ 90% | |
Dimensions | 445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch) | |
Weight | =5Kg (11.0lb) |
