Home Discontinued Products LTS LTN7608-P8 8 Channel Professional Level IP NVR 40Mbps 8 Port PoE

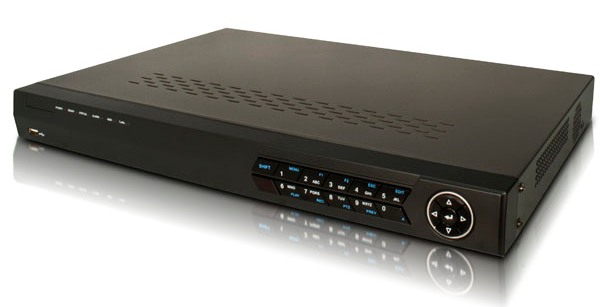

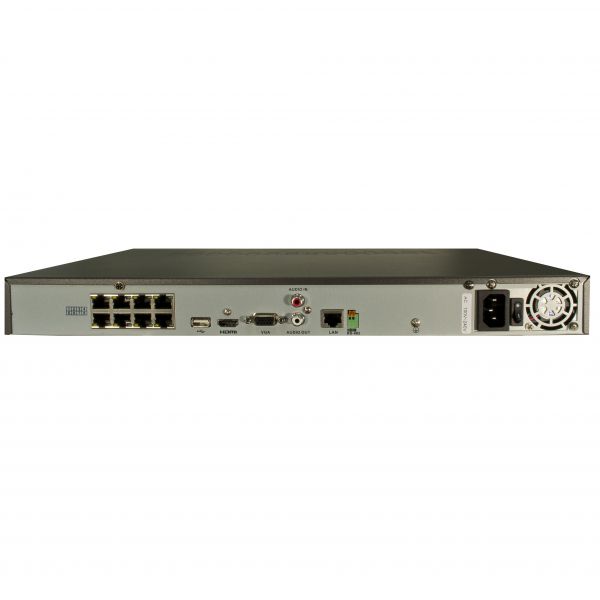

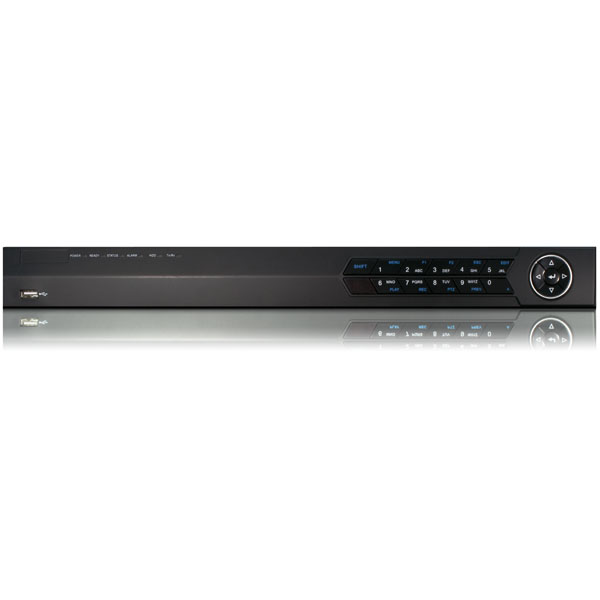

LTS LTN7608-P8 8 Channel Professional Level IP NVR 40Mbps 8 Port PoE
Please note, this product has been discontinued by manufacturer. Before ordering, please Contact Us or call 866-446-2288 for availability or for suggestion on compatible replacement.
8CH 1080P NVR, Third-party network cameras supported, Up to 5 Megapixel resolution recording, HDMI and VGA output at up to 1920×1080P resolution, 8-ch simultaneous playback, HDD quota and group management, 8 independent PoE network interfaces.
FEATURES
- Connectable to network cameras with up to 5 Megapixels resolution.
- Support live view, storage and playback of video at 5 Megapixels resolution.
- 8 independent PoE network interfaces are provided.
- Zoom in for any area when playback.
- Playing reversely.
- Adverse playback for multi-channel.
- Realize instant playback for assigned channel during multi-channel display mode.
- Digital zoom in live view and playback mode.
- 4CH simultaneous playback at D1 resolution.
- Customization of tags, searching and playing back by tags.
- Searching record files by events (alarm input/motion detection).
- Holiday recording schedule configuration.
- HDD quota management; different capacity can be assigned to different channel.
- Redundant recording.
- 2 SATA interfaces available.
- Dual system design ensures high reliability and stability.
- 1 self-adaptive 10M/100M/1000M network interface.
- IPv6 is supported.
- TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, UPnP and iSCSI are supported.
LTN7608-P8 | ||
Video/Audio Input | IP Video Input: | 8-Ch |
Audio Input: | 1-Ch, RCA (2.0 Vp-p, 1kΩ) | |
Video/Audio Output | VGA Output | 1-Ch,resolution: 1920?1080P/60Hz, 1600?1200/60Hz, 1280?1024/60Hz 1280?720/60Hz, 1024?768/60Hz |
CVBS Output | - | |
HDMI Output | 1-Ch, resolution: 1920 ? 1080P /60Hz, 1920 ? 1080P /50Hz, 1600 ? 1200 /60Hz 1280 ? 1024 /60Hz, 1280 ? 720/60Hz, 1024 ? 768 /60Hz | |
Recording Resolution | 5MP / 3MP / 1080P / UXGA / 720P / VGA / D1 / DCIF / 2CIF / CIF / QCIF | |
Audio Output | 1-Ch BNC(Linear electrical level, 600Ω) | |
Playback Resolution | 5MP / 3MP / 1080P / UXGA / 720P / VGA / D1 / DCIF / 2CIF / CIF / QCIF | |
Simultaneous Playback | 8-Ch, 4CIF (Real-time) 8-Ch, 4-Ch 720P, 2-Ch 1080P, 5 MP (No Realtime) | |
Hard Disk Driver | Interface Type | 2 SATA Interfaces for 2HDDs |
Capacity | Up to 4TB capacity for each disk | |
External Interface |
USB Interface | 2 USB 2.0 Interfaces |
Serial Interface | 1 RS-485 Interface | |
Alarm Input | - | |
Alarm Output | - | |
General | Power Supply | 100 ~ 240VAC, 47 ~ 63Hz, 3A |
Consumption | ≤ 15 W (without hard disk) | |
Working Temperature | -10 ?C ~ 55 ?C | |
Humidity | 10% ~ 90% | |
Chassis | 19-ich rack-mounted 1U chassis | |
Dimensions | 445 ? 290 ?45 mm (W x D x H) | |
Weight | ≤ 2 Kg ( without hard disk) |
