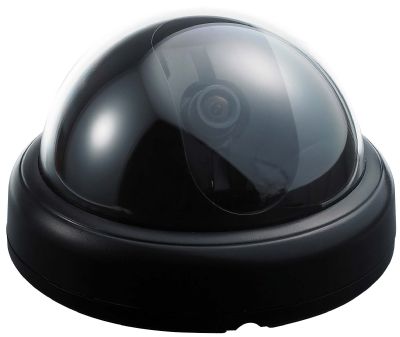

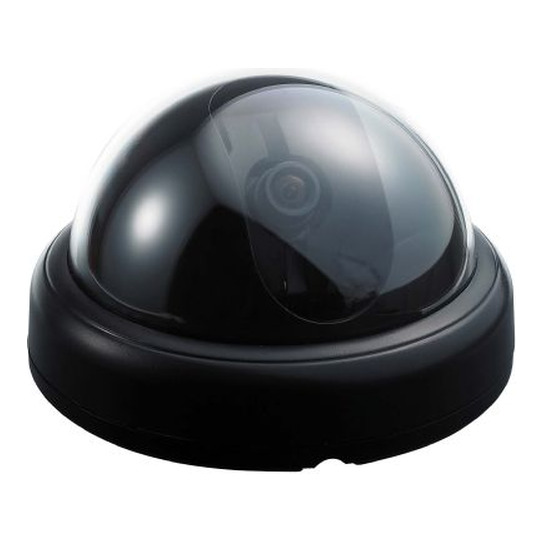

NEW! EYEMAX DO 562M, 560/580TVL ULTRA HI-RES, DAY/NIGHT DELUXE DOME CAMERA WITH ON SCREEN MENU, INSTALLER'S FAVORITE
Product Description
DO 562M have a small program built-in to the camera to help users to setup the camera function without difficulties. No more reading a manual and tipping dip-switches to configure the camera. This indoor camera comes with fixed 3.6 mm lens with over 70 degree field of view. Perfect and very affordable day & night camera. Beautiful crystal clear picture in very high resolution for very demanding applications.
|
FEATURES
- 1/3” Sony Super HAD CCD
- 3.6mm Fixed Lens
- 560 TV Line in Color
- Day & Night
- OSD - On Screen Display - Easy camera setup
- Auto White Balance (AWB) / Back Light Compensation (BLC) / Auto Gain Control (AGC)
- DC 12V
|
|
|
|
SPECIFICATIONS
|
DO 562-M |
| Resolution |
560(Color) / 580(B/W) TV Lines Horizontally |
| Image Pick-up Device |
Sony 1/3 inch Super HAD CCD with NEXT process chip |
| Picture Elements |
811(H) x 508(V) 410K pixels |
| Effective Picture Elements |
768(H) x 494(V) 380K pixels |
| Scanning Area |
3.65(H) x 2.74(V) mm |
| Scanning System |
2:1 Interface/ 525 Lines / 60 Fields / 30 Frames |
| Iris Mode |
ESC |
| Lens |
3.6mm Fixed Lens |
| Minimum Illumination |
0.3 Lux at F1.2 / 0 Lux (IR On) |
| Sync. System |
Internal Only |
| Video Output |
1.0 Vp-p Comp. 75Ω |
| Electronic Iris |
1/60 sec ~1/100,000 sec |
| O.S.D |
Built-in |
| Backlight Compensation |
Low / Middle / High / Off Selectable |
| Gain Control |
Low / Middle / High / Off Selectable |
| White Balance |
ATW / AWC / Manual / Outdoor (1,800°K~10,500°K) |
| Day & Night |
Auto / On |
| Gamma |
r=0.45 |
| S/N Ratio |
50dB (AGC Off, Eight On) |
| Operating Temp. |
14°F ~ 122°F |
| Power Source |
DC 12V |
| Power Consumption |
200mA |
| Casing / Dimensions |
5.0”(Ø) x 3.5”(H) / 1.1 lbs / Medium Deluxe Case |
|
|
WHY 3-AXIS DOMES ARE EASY TO INSTALL?
1. 3-AXIS DOME INSTALLATION ON WALL
Unlike other domes, 3-AXIS DOME can change view by turning the 3rd axis easily without a hassle!
2. 3-AXIS DOME INSTALLATION ON CEILING
Unless reinstalling camera bracket, you won't be able to flip the view on ordinary domes. 3-AXIS DOME can change view by turning the 3rd axis easily without a hassle!
|
|
3. SERVICE VIDEO-OUT
It has a small connector that duplicates the video output. This comes very handy once camera is in place and you have no way to see how is the angle like unless you see the monitor at the cable end. Just plug and finish your job in a miniute.
|
|
4. OSD CAMERA CONTROL
O.S.D (On Screen Display) provides you with custom function control. We all know auto-setting is not always the best choice for certain circumstances. So, there is a little joystick control button to give more selectable options in order to perform best picture quality possible.
|
|
|
5. FLIP OPEN COVER
No more screwing open cover. Insert a coin to the side hole and twist to remove dome cover. Install camera quicker and easier.
|
|
