TELPIX BX 584DNR (CO TP554N) 1/3" SONY SUPER HAD CCD EXTREMLY HI-RES 580TVL!!! 0,002 LUX Day & Night, BRIGHT COLOR PICTURE AT NIGHT!!!
Product Description
New manufacturer model number BX 584DNR.
This is the best camera I've ever tested. Daytime picture is amazing. So sharp and so clear. Resolution is outstanding. This camera can see in the darkest night in COLOR!!!! My eyes can't see as good as this camera. You will think it's a day outside in the middle of the night. This is incredible. It's better than infrared cameras. It is eqipped with on screen display. Easy to operatee on screen menu. It is even equipped with its own motion detection system. If you looking for great camera, here it is and it is affordable.
Color Day & Night, Ultra High-Resolution 580 TV Lines! Extremely sensitive at 0.002 Lux using SENS-UP Low Light Enhancement Feature. For highest demand applications.

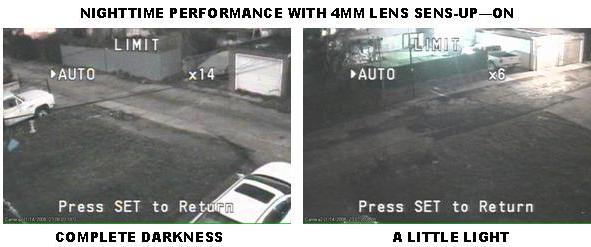

You asked for a low cost, professional and truly stunning 580 lines of resolution. The TP-554N camera gives you 580 razor sharp lines of color resolution for a crisp and clear picture. The SENS-UP feature of the TP-554N allows for its impressive 0.002 low light lux rating which leads to its superb night time performance ability. Also, the noise reduction function helps to improve the total DVR recording time by up to 30%. The 1/3 inch density CCD and digital processor permits high quality pictures to be captured in very low light conditions. It detects the motion of objects without the use of a sensor. Another feature of the TP-554N is its one power connection ability which allows it to configure itself automatically to a power source of either 12VDC or 24VAC. The AC line lock is standard with all cameras in 24VAC operations. It has an assistant DSP chip that can remove image noise efficiently to show clear and pristine images, even in areas of low luminance. In normal or high luminance, this camera remains in color mode. In areas of low luminance this camera automatically adjusts and converts itself into B/W mode.
This is the best camera I've ever tested. Daytime picture is amazing. So sharp and so clear. Resolution is outstanding. This camera can see in the darkest night in COLOR!!!! My eyes can't see as good as this camera. You will think it's a day outside in the middle of the night. This is incredible. It's better than infrared cameras. It is eqipped with on screen display. Easy to operatee on screen menu. It is even equipped with its own motion detection system. If you looking for great camera, here it is and it is affordable.
Color Day & Night, Ultra High-Resolution 580 TV Lines! Extremely sensitive at 0.002 Lux using SENS-UP Low Light Enhancement Feature. For highest demand applications.
You asked for a low cost, professional and truly stunning 580 lines of resolution. The TP-554N camera gives you 580 razor sharp lines of color resolution for a crisp and clear picture. The SENS-UP feature of the TP-554N allows for its impressive 0.002 low light lux rating which leads to its superb night time performance ability. Also, the noise reduction function helps to improve the total DVR recording time by up to 30%. The 1/3 inch density CCD and digital processor permits high quality pictures to be captured in very low light conditions. It detects the motion of objects without the use of a sensor. Another feature of the TP-554N is its one power connection ability which allows it to configure itself automatically to a power source of either 12VDC or 24VAC. The AC line lock is standard with all cameras in 24VAC operations. It has an assistant DSP chip that can remove image noise efficiently to show clear and pristine images, even in areas of low luminance. In normal or high luminance, this camera remains in color mode. In areas of low luminance this camera automatically adjusts and converts itself into B/W mode.
FEATURES
- Sony 1/3” Super HAD CCD
- 0.002 Super Low Lux with Sens-up Feature (×128)
- Horizontal Resolution of 580 TV Lines
- Camera configuration available with On Screen Display (OSD)
- Super Digital Noise Reduction (SDNR)
- Auto detects DC 12V or AC 24V
- 50 dB Signal to Noise Ratio (S/N Ratio) for digital recording
SPECIFICATIONS
| CO 584DNR | |
| Image Pick-up Device | 1/3” Sony Super HAD CCD |
| Picture elements | 811(H) x 508(V) 410K pixels |
| Effective picture elements | 768(H) x 494(V) 380K pixels |
| Scanning Area | 3.65(H) x 2.74(V) mm |
| Scanning System | 2:1 Interlace 525 Lines / 60 Fields / 30 Frames |
| Resolution | 580 TV Lines Horizontally |
| S/N Ratio | More than 50dB (AGC OFF, weight ON) |
| Video Output | CVBS : 1.0Vp-p / 75Ω |
| Minimum Illumination | 0.3 Lux at F1.2 (50 IRE, AGC High, DNR High) 0.002 Lux (Sens-up x 128) |
| White Balance | ATW / AWC / Manual (1,800°K ~ 10,500°K) |
| Electronic Shutter Speed | Auto / Manual (x128 ~ 1/60~1/120,000 sec.) Sens-up and Sens-up Limit is selectable / Flickerless |
| O.S.D | Built-in |
| BLC | Low/Middle/High/Off Selectable |
| Gain Control | Low/Middle/High/Off Selectable |
| SDNR | Low/Middle/High/Off Selectable |
| Day & Night | Auto / On |
| Sync | Int / LL Selectable |
| Motion Detection | ON / OFF (4 Zone) |
| Privacy | ON / OFF (4 Zone) |
| Mirror | ON / OFF |
| Operational Temperature | 30% to 80% RH / -10°C ~ 50°C(14°F~122°F) |
| Storage Temperature | 20% to 80% RH / -20°C ~ 60°C(14°F~122°F) |
| Power Input Voltage | DC 12V ±10% or AC 24V (Dual Power) |
| Power Consumption | Max 2.0W |
